Product Summary

The E5CN-C2ML-500 is a kind of Intelligent 1/16 DIN Temperature Controller.

Parametrics

E5CN-C2ML-500 absolute maximum ratings: (1)Supply voltage: 100 to 240 VAC, 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Power consumption: 7 VA; (4)Current output: 4 to 20 mA DC, load: 600 Ω max., resolution: approx. 2,600; (5)Alarm output: SPST-NO, 250 VAC, 1 A (resistive load), electrical life: 100,000 operations.

Features

E5CN-C2ML-500 features: (1)Accepts thermocouple, platinum RTD, non–contact temperature sensor, and analog temperature inputs; (2)Auto-tuning and self-tuning available; functions can be used simultaneously; (3)Heating or heating/cooling control; (4)Event input option allows multiple set point selection and Run/Stop function; (5)Water-resistant construction (NEMA 4X, equivalent to IP66); (6)Conforms to UL, CSA, and IEC safety standards as well as CE marking; (7)3-year warranty.

Diagrams

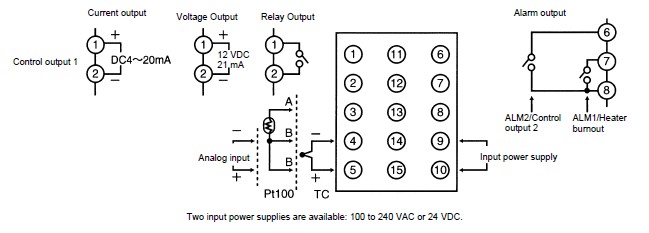

E5CN-C2ML-500 circuit diagram
