Product Summary

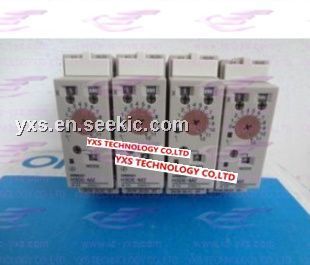

The H3DE-M2 is a solid-state timer.
Parametrics
H3DE-M2 absolute maximum ratings: (1)Power supply voltage: 24 to 240 VAC/DC, 50/60 Hz; (2)Allowable voltage fluctuation range: 24 to 240 VAC/DC: 85% to 110% of rated voltage, 12 VDC: 90% to 110% of rated voltage; (3)Control output Contact output: 5 A at 250 VAC with resistive load; (4)Ambient operating temperature: -20 to 55°C (with no icing); (5)Storage temperature: -40 to 70°C (with no icing).
Features
H3DE-M2 features: (1)A wide AC/DC power supply range (24 to 240 VAC/DC); (2)All sub-series include models with 12-VDC power supply; (3)G-type Models (H3DK-G)now include model with 240 to 440- VAC power supply; (4)UL*3, CSA, and CCC*2 certification and EN 61812-1 compliance. CE Marking; (5)EMC (EN 61812-1)compliance for application in heavy industrial, residential, commercial, or light industrial environments; (6)Finger-safe terminal block and captive screws according to EN 50274.

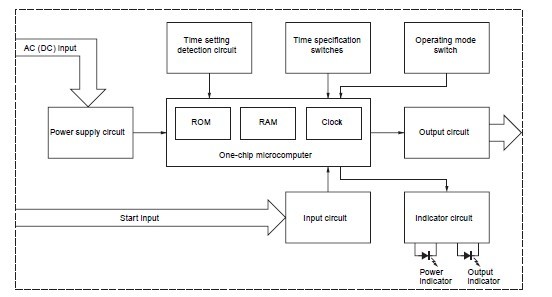

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 H3DE-M2AC/DC24-230 |
Omron Industrial |
Stopwatches & Timers MULTI-FUN SOLID STAT |
Data Sheet |
Negotiable |
|
||||
 |
H3DE-M2DC12 |
Omron Industrial |
Controllers MULTI-FUN SOLID STAT 12V DC |
Data Sheet |
Negotiable |
|
||||
|
H3DE-M2 DC12 |
|
RELAY TIMER ANALOG DIN 8MODE 12V |
Data Sheet |
Negotiable |
|
||||
 |
H3DE-M2 AC/DC24-230 |
|
RELAY TIMER ANALOG DIN 8 MODE |
Data Sheet |
Negotiable |
|
||||
