Product Summary

The E5EN-R1TC is a basic-type digital temperature controller.

Parametrics

E5EN-R1TC absolute maximum ratings: (1)Power supply voltage: No D in model number: 100 to 240 VAC, 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Power consumption: 100 to 240 VAC: 10 VA; (4)Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB.); (5)Control method ON/OFF control or 2-PID control (with auto-tuning); (6)Setting method Digital setting using front panel keys; (7)Bank switching Not supported; (8)Ambient temperature Operating: –10°C to 55°C (with no icing).

Features

E5EN-R1TC features: (1)Indication Accuracy Thermocouple input: +/-0.3% of PV (previous models: +/-0.5%)， Pt input: +/-0.2% of PV (previous models: +/-0.5%) Analog input: +/-0.2% FS (previous models: +/-0.5%); (2)A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV; (3)Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter; (4)Three-level display that simultaneously displays the PV, SV, and MV; (5)One-touch operation with PF Key that can be assigned to auto/ manual, RUN/STOP, or other functions.

Diagrams

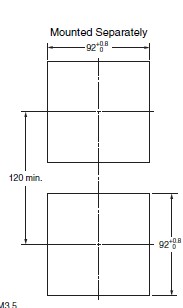

E5EN-R1TC dimension figure
