Product Summary

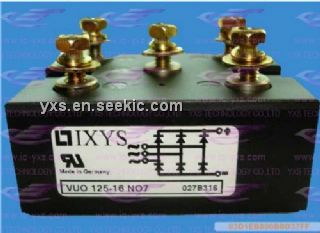

The VUO125-16NO7 is a three Phase Rectifier Bridge. The applications of the device include upplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies and Field supply for DC motors.
Parametrics
VUO125-16NO7 absolute maximum ratings: (1)IdAVM: 166 A at TC = 85℃, module; (2)IFSM: 1800 A when TVJ = 45℃; t = 10 ms (50 Hz), sine; 1950 A at VR = 0 t = 8.3 ms (60 Hz), sine; 1600 A at TVJ = TVJM t = 10 ms (50 Hz), sine; 1800 A at VR = 0 t = 8.3 ms (60 Hz), sine; (3)I2t: 16200 A2s at TVJ = 45℃ t = 10 ms (50 Hz), sine; 16000 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; 12800 A2s at TVJ = TVJM t = 10 ms (50 Hz), sine; 13600 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; (4)TVJ: -40to +150℃; (5)TVJM: 150℃; (6)Tstg: -40 to +150℃; (7)VISOL: 2500 V~ at 50/60 Hz, RMS t = 1 min; 3000 V~ at IISOL≤ 1 mA t = 1 s; (8)Weight: typ. 225 g.
Features
VUO125-16NO7 features: (1)Package with screw terminals; (2)Isolation voltage 3000 V~; (3)Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop; (6)UL registered E 72873.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO125-16NO7 |
Ixys |
Bridge Rectifiers 125 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
