Product Summary

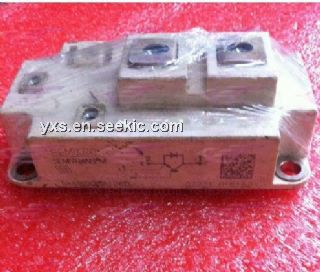

The SKM800GA126D is a Trench IGBT Module. The applications of the SKM800GA126D include AC inverter drives, UPS, electronic welders.
Parametrics
SKM800GA126D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 960A; (3)ICRM: 1200A; (4)VGES: ±20V; (5)tpsc: 10μs; (6)IF: 680A; (7)IFRM: 1200A; (8)IFSM: 3600A; (9)It(RMS): 500A; (10)Tvj: -40 to 150℃; (11)Tstg: -40 to 125℃; (12)Visol: 4000V.
Features
SKM800GA126D features: (1)Trench=Trenchgate technology; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6×IC.
Diagrams
