Product Summary

The MG100G1AL3-5 is an IGBT module.

Parametrics

MG100G1AL3-5 absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO(SUS): 450 V; (4)VEBO: 6 V; (5)Ic(DC): 100 A; (6)IB: 5 A; (7)PC: 400 W; (8)Tj: 150 ℃; (9)Tstg: -40 to 125℃; (10)VIsol: 2500V.

Features

MG100G1AL3-5 features: (1)ICBO: 2.0mA; (2)IEBO: 200mA; (3)VCEO(SUS): 450V; (4)hFE: 100; (5)VCE(sat): 2.0V; (6)VBE: 2.7V; (7)VECO: 1.6V; (8)trr: 2.0μs; (9)Cob: 1000pF; (10)ton: 2.0μs; (11)tstg: 12μs; (12)tf: 2.0μs; (13)Rth(j-c): 0.31℃/W.

Diagrams

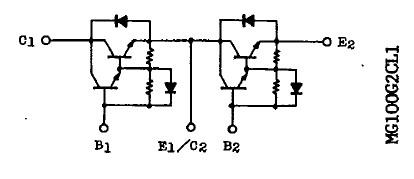

MG100G1AL3-5 block diagram
