Product Summary

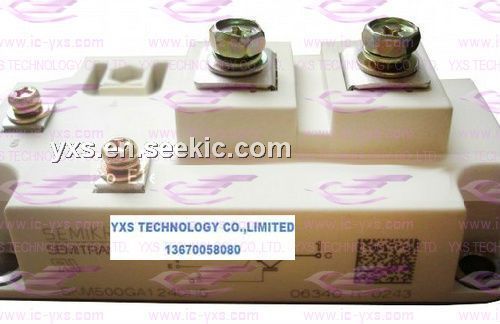

The SKM500GA124D is an IGBT module. Applications of the SKM500GA124DH6 are Switched mode power supplies, Three phase inverters for AC motor speed control, Pulse frequencies also above 10kHz.
Parametrics
SKM500GA124DH6 absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 700(500)A; (3)ICRM, tp=1ms: 800A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN.: 2500V.
Features
SKM500GA124DH6 features: (1)MOS input; (2)N channel, homgeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch up free; (7)Fast and soft CAL diodes; (8)Isolated copper baseplate using DBC direct copper bonding technology; (9)Large clearance and creepage distance.

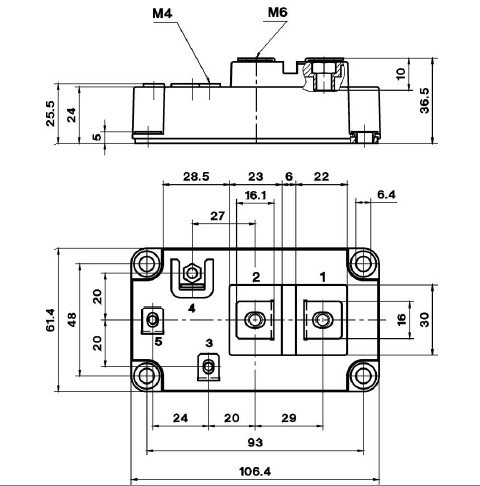

Diagrams
