Product Summary
The SKM40GDL123D is a Standard IGBT module. The applications of it are switched mode power supplies, three phase inverters for AC motor speed control, pulse frequencies also above 15kHz.
Parametrics
SKM40GDL123D absolute maximum ratings: (1)VCES: 1200V; (2)IC:Tcase=25℃: 40A, Tcase=80℃: 30A; (3)ICRM: 50A; (4)VGES: ±20V; (5)tpsc: 10μs; (6)IF:Tcase=25℃: 45A, Tcase=80℃: 30A; (7)IFRM: 50A; (8)IFSM: 350A; (9)It(RMS): 100A; (10)Tvj: -40℃ to +150℃; (11)Tstg: -40℃ to +125℃; (12)Visol: 2500V.
Features
SKM40GDL123D features: (1)MOS input(voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuir capability, self limiting to 6* Icnom; (6)latch-up free; (7)fast and soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance(9mm) and creepage distances(13mm).

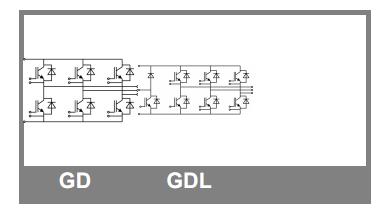

Diagrams
