Product Summary

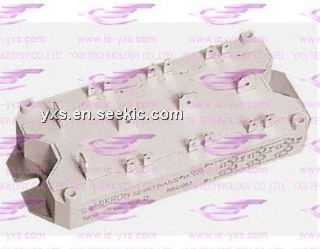

The SKM40GD123D is an IGBT module. The applications of it are switched mode power supplies, three phase inverters for AC motor speed control, pulse frequencies also above 15kHz.
Parametrics
SKM40GD123D absolute maximum ratings: (1)VCES: 1200V; (2)IC:Tcase=25℃: 40A, Tcase=80℃: 30A; (3)ICRM: 50A; (4)VGES: ±20V; (5)tpsc: 10μs; (6)IF:Tcase=25℃: 45A, Tcase=80℃: 30A; (7)IFRM: 50A; (8)IFSM: 350A; (9)It(RMS): 100A; (10)Tvj: -40℃ to +150℃; (11)Tstg: -40℃ to +125℃; (12)Visol: 2500V.
Features
SKM40GD123D features: (1)MOS input(voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuir capability, self limiting to 6* Icnom; (6)latch-up free; (7)fast and soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance(9mm) and creepage distances(13mm).

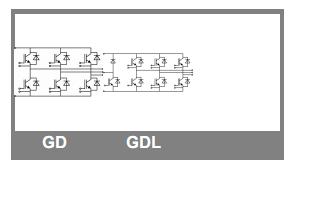

Diagrams
