Product Summary

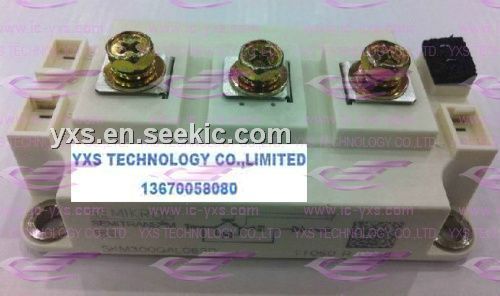

The SKM300GAL063D is a Superfast IGBT Module. The applications of the SKM300GAL063D include swiching(not for linear use), switched mode power supplies, AC inverter servo drives, UPS uninterruptable power supplies, welding inverters.

Parametrics

SKM300GAL063D absolute maximum ratings: (1)VCES: 600V; (2)IC, TC=25(70)℃: 400(300)A; (3)ICRM, tp=1ms: 600A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN.: 2500V.

Features

SKM300GAL063D features: (1)N-channel, homogeneous Silicon structure (NPT-Non punch-through IGBT); (2)low tail current with low temperature dependance; (3)high short circuit capability, self limiting if term. G is clamped to E; (4)Pos. temp. -coeff. of VCEsat; (5)50% less turn off losses; (6)30% lees short circuit current; (7)Very low Cies, Coes, Cres; (8)Latch-up free; (9)fast and soft inverse CAL diodes; (10)isolated copper baseplate using DBC direct copper bonding technology; (11)large clearance (12 mm) and creepage distances (20 mm).

Diagrams

SKM300GAL063D block diagram
