Product Summary

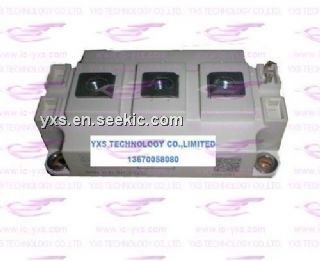

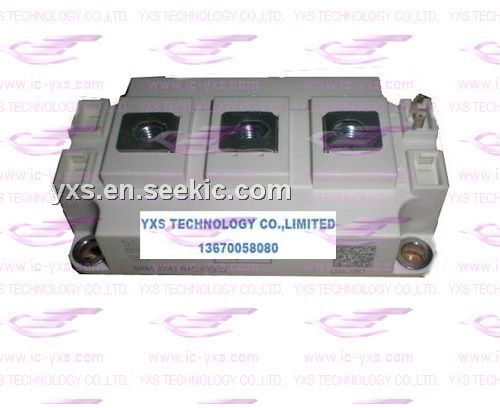

The SKM200GAL173D is an IGBT module. The typical applications of the device include AC inverter drives on mains 575-750 VAC, DC bus voltage 750-1200 VDC, public transport and switching.

Parametrics

SKM200GAL173D absolute maximum ratings: (1)VCES: 1700V; (2)IC: 220A at Tc=25℃; 150A at Tc=80℃; (3)ICRM: 300A at tp=1ms; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V; (8)IF: 150A at T=25℃; 100A at Tc=80℃; (9)IFRM: 300A at tp=1ms; (10)IFSM: 1450A.

Features

SKM200GAL173D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature depedance; (5)high short circuit capability, self limiting to 6Icnom; (6)latch-up free; (7)fast&soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance and creepage distance.

Diagrams

SKM200GAL173D block diagram
