Product Summary
The SKM200GAL126D is an IGBT module. It is suitalbe for electronic welders, AC inverter drives and UPS.
Parametrics
SKM200GAL126D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 260A; (3)ICRM: 300A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V.
Features
SKM200GAL126D features: (1)homogeneous Si; (2)trench=trenchgate technology; (3)VCE(sat) with positive temperature coefficient; (4)high short circuit capability, self limiting to 6Ic.

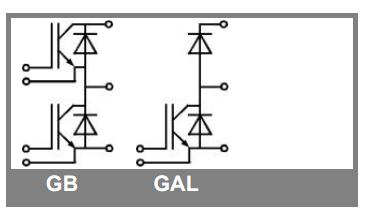

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM200GAL126D |
Other |
|
Data Sheet |
Negotiable |
|
||||
