Product Summary

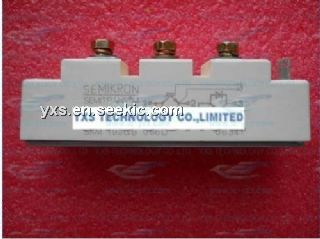

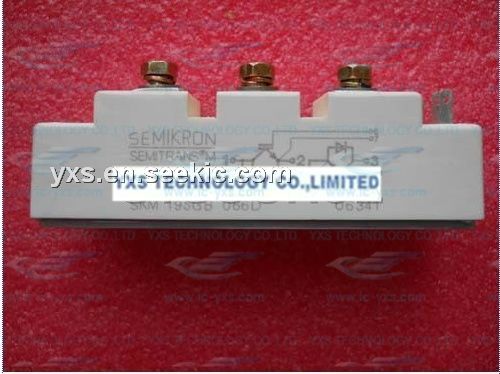

The SKM195GB066D is a Trench IGBT Module. The applications of the SKM195GB066D include AC inverter drivers, UPS, Electronic welders.
Parametrics
SKM195GB066D absolute maximum ratings: (1)TJ=25℃, VCES: 600V; (2)TJ=150℃, TCASE=25℃, IC: 265A; TCASE=85℃, IC: 200A; (3)ICRM=20xlCnom, ICRM: 400A; (4)VGES: ±20V; (5)VCC=600V; VGE≤20V; TJ=125℃, VCES<1200V, tpsc: 6μs.
Features
SKM195GB066D features: (1)Homogeneous Si; (2)Trench = Trenchgate technology; (3)VCE(sat) with positive temperature coefficient; (4)High short circuit capability, self limiting to 6×Icnom.
Diagrams
