Product Summary
The SKM145GB174DN is a low loss IGBT module. The typical applications are AC inverter drives on mains, 575-750V AC, DC bus voltage 750-1200VDC, public transport and switching.
Parametrics
SKM145GB174DN absolute maximum ratings: (1)VCES: 1700V; (2)IC: 160A at Tc=25℃; 110A at Tc=80℃; (3)ICRM: 200A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 3400V.
Features
SKM145GB174DN features: (1)N channel, homogeneous silicon structure; (2)low inductance case; (3)high short circuit capability, self limiting; (4)fast and soft inverse CAL diodes; (5)without hard mould; (6)large clearance and creepage distance.

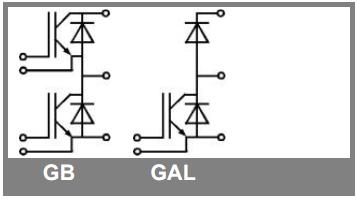

Diagrams
