Product Summary

The SKM111RZR is a low loss power MOSFET module.

Parametrics

SKM111RZR absolute maximum ratings: (1)VDS: 100V; (2)ID: 200(150) A at Ts=25(80) ℃; (3)IDM: 600 A at 1 ms; (4)VGS: ± 20 V; (5)Tvj, (Tstg): -40 to +150(125) ℃; (6)Visol: 2500 V at AC, 1 min.

Features

SKM111RZR features: (1)avalanche characteristic; (2)N-channel, enhancement mode; (3)short connections and built-in gate resistors to suppress internal oscillations even in critical applications; (4)isolated copper baseplate; (5)all electrical connections on top for easy busbaring; (6)large clearances (10 mm) and creepage distances (20 mm); (7)UL recognized, file no. E63532.

Diagrams

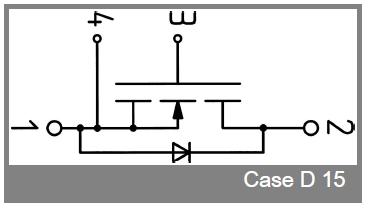

SKM111RZR block diagram
