Product Summary

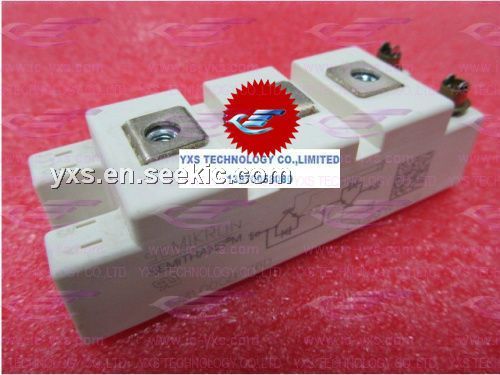

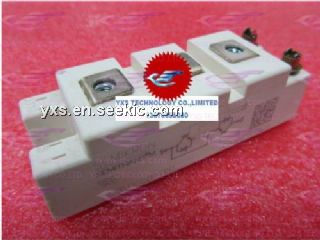

The SKM100GB176D is an IGBT module. It is suitable for AC inverter drives mains 575-750V AC and public transport.

Parametrics

SKM100GB176D absolute maximum ratings: (1)VCES: 1700V; (2)IC: 125A at Tj=150℃, Tc=25℃; 90A at Tj=150℃, Tc=80℃; (3)ICRM: 150A; (4)VGES: ±20V; (5)tpsc: 10μs.

Features

SKM100GB176D features: (1)homogeneous Si; (2)Trench=Trechgate technogoy; (3)VCE(sat) with postitive temperature coefficent; (4)high short circuit capability, self limiting to 6IC.

Diagrams

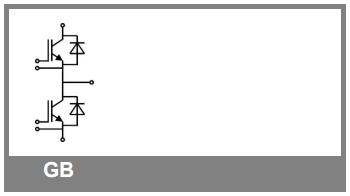

SKM100GB176D block diagram
