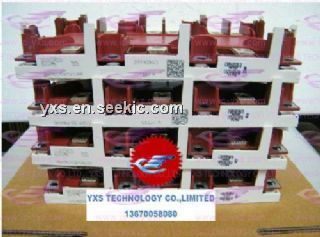

Product Summary

The SKIM601GD126DM is an IGBT Module. The applications of the SKIM601GD126DM include switched mode power supplies, three phase inverters for AC motor speed control.

Parametrics

SKIM601GD126DM absolute maximum ratings: (1)VCES: 1200V; (2)IC: 480A; (3)ICRM: 900A; (4)VGES: ±20V; (5)TJ: -40 to 125℃; (6)Tcop: 125℃; (7)Visol: 2500V; (8)IF: 450A; (9)IFRM: 900A; (10)IFSM: 3300A.

Features

SKIM601GD126DM features: (1)Trench gate IGBT with field stop layer; (2)Low inductance case; (3)Fast & soft inverse CAL diodes; (4)Isolated by AIN DCB (direct copper bonded) ceramic plate; (5)Pressure contact technology for thermal contacts; (6)Spring contact system to attach driver PCB to the control terminals; (7)Integrated temperature sensor.

Diagrams

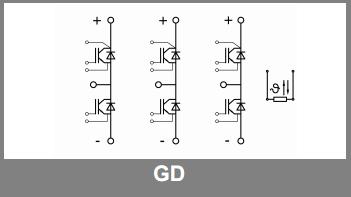

SKIM601GD126DM block diagram
