Product Summary

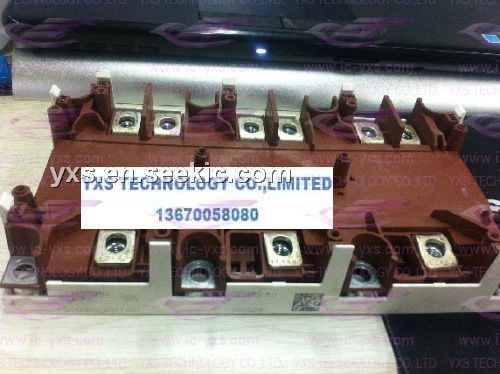

The SKIM455GD12T4D1 is an IGBT Module. The applications of the SKIM455GD12T4D1 include uninteruptable power supplies, three phase inverters for AC motor speed control.

Parametrics

SKIM455GD12T4D1 absolute maximum ratings: (1)VCES: 1200V; (2)IC: 390A; (3)ICRM: 780A; (4)VGES: ±20V; (5)TJ: -40 to 125℃; (6)Tcop: 125℃; (7)Visol: 2500V; (8)IF: 390A; (9)IFRM: 600A; (10)IFSM: 3300A.

Features

SKIM455GD12T4D1 features: (1)Homogeneous Si; (2)SPT=soft punch through technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6×IC; (5)Isolated by AI2O3 DCB ceramic plate; (6)Pressure contact technology for thermal contacts; (7)Spring contact system to attach driver PCB to the control terminals; (8)Integrated temperature sensore.

Diagrams

SKIM455GD12T4D1 block diagram
