Product Summary

The SKIIP83ANB15T4 is a 3-phase bridge rectifier.

Parametrics

SKIIP83ANB15T4 absolute maximum ratings: (1)VRRM: 1500V; (2)ID: 100A; (3)IFSM: 1600A; (4)I2t: 12000A2s; (5)VCES: 1200V; (6)VGES: ± 20V; (7)IC: 95/65A; (8)ICM: 190/130A; (9)Tj: - 40 to + 150℃; (10)Tstg: - 40 to + 125℃.

Features

SKIIP83ANB15T4 features: (1)VF: 1.15V; (2)VTO: 0.8V; (3)rT: 3.5mΩ; (4)Rthjh: 0.7K/W; (5)Temperature Sensor, RTS T = 25 / 100 ℃: 1000 / 1670 Ω.

Diagrams

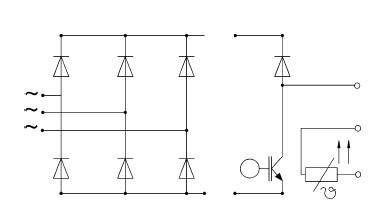

SKIIP83ANB15T4 block diagram
