Product Summary

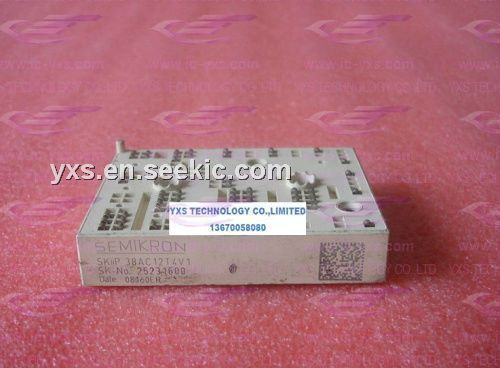

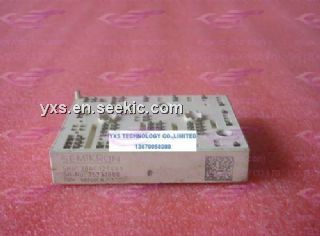

The SKIIP38AC12T4V1 is a 3-phase bridge inverter.

Parametrics

SKIIP38AC12T4V1 absolute maximum ratings: (1)VCES: 1200V; (2)On the conditions of Ts=25(70)℃, IC: 125(102)A; (3)On the conditions of tp≤1ms,ICRM: 300A; (4)VGES: ±20V; (5)Tj: -40~+150℃; (6)If: 103(82)A; (7)Tstg: -40 to 125℃; (8)Visol: 2500V.

Features

SKIIP38AC12T4V1 features: (1)Fast trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections; (4)UL recognised file no. E63532.

Diagrams

SKIIP38AC12T4V1 block diagram
