Product Summary
The SKIIP13AC126V1 is a 3-phase bridge inverter. The applicaitons of the device include inveter up to 16kVA and typical motor power 7.5kW.
Parametrics
SKIIP13AC126V1 absolute maximum ratings: (1)VIGBT inverter, CES: 1200V; IC: 41A at Ts=25℃; 31A at Ts=70℃; ICRM: 50A; VGES: ±20V; Tj: -40 to 150℃; (2)diode inveter, IF: 30(22)A at Ts=25(70)℃; IFRM: 50A; Tj: -40 to 150℃; (3)ItRMS: 40A; (4)Tstg: -40 to 125℃; (5)Visol: 2500V.
Features
SKIIP13AC126V1 features: (1)fast trench IGBTs; (2)robust and soft freewheeling diodes in CAL technology; (3)highly reliable spring contacts for electrical connections; (4)UL recognised file no. E63532.

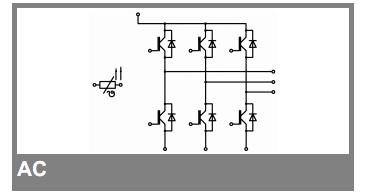

Diagrams
