Product Summary

The SKDH116/16-L100 is a 3-Phase Bridge Rectifier. The applications of the SKDH116/16-L100 include DC drives, controlled filed rectifiers for DC motors, controlled battery charger.

Parametrics

SKDH116/16-L100 absolute maximum ratings: (1)ID: 110A; (2)IFSM/ITSM: 950A; (3)I2t: 4500A2s; (4)VCES/CGES: 1200V/20V; (5)IC: 125A; (6)ICM: 250A; (7)VRRM: 1200V; (8)IF: 130A; (9)IFM: 240A; (10)TVJ: -40 to 150℃.

Features

SKDH116/16-L100 features: (1)Compact design; (2)Two screws mounting; (3)Heat transfer and isolation through direct copper bonded aluminium oxide ceramic (DCB); (4)High surge currents; (5)Up to 1600V reverse voltage; (6)UL recognized, file no. E63532.

Diagrams

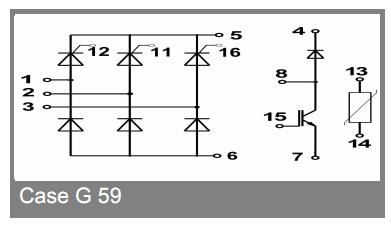

SKDH116/16-L100 block diagram
