Product Summary

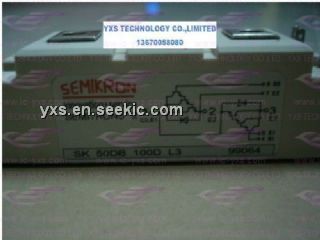

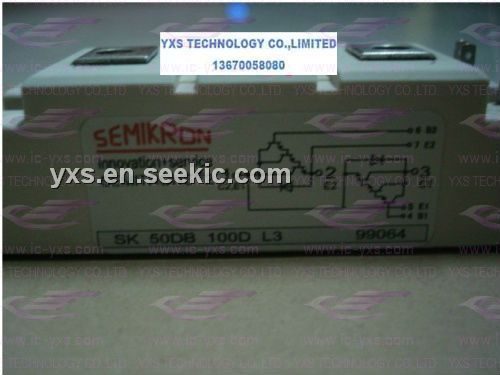

The SK50DB100DL3 is an NPN Power Darlington Module. The applications of the SK50DB100DL3 include switched mode power supplies, DC servo and robot drivers, AC motor controls, Brake choppers(DAL).

Parametrics

SK50DB100DL3 absolute maximum ratings: (1)VCEV(sus): 1000V; (2)Vcev: 1000V; (3)Vcbo: 1000V; (4)Vebo: 7V; (5)IC: 50A; (6)ICM: 100A; (7)IF=-IC: 50A; (8)IB: 3A; (9)Ptot: 400W; (10)Tvj: -40 to 150℃; (11)Tstg: -40 to 125℃; (12)Visol: 2500V.

Features

SK50DB100DL3 features: (1)Isolated baseplate(ease of mounting of one or several modules on one heatsinl); (2)All electrical connections on top(ease of interconnecting of modules with busbars/PCB); (3)Large clearances and creepage distance; (4)Parallel connected fast recovery inverse diode; (5)UL recognized, file no.63 532.

Diagrams

SK50DB100DL3 block diagram
