Product Summary
The SEMIX703GB126HD is a Trench IGBT Module. The applications of the SEMIX703GB126HD include AC inverter drives; UPS; Electronic welders.
Parametrics
SEMIX703GB126HD absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 700(490)A; (3)ICRM, tp=1ms: 900A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN.: 4000V.
Features
SEMIX703GB126HD features: (1)Homogeneous Si; (2)Trench=Trenchgate punch through technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability.

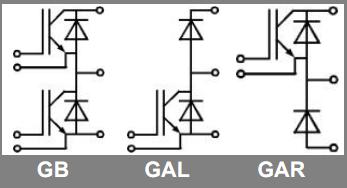

Diagrams
