Product Summary

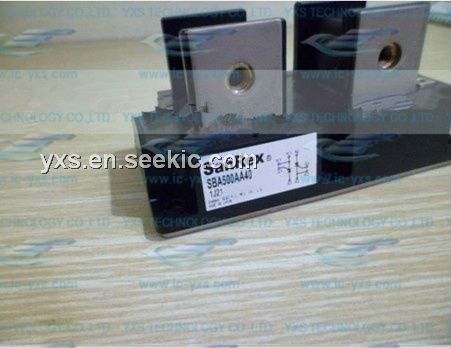

The SBA500AA40 is a Power Thyristor Module designed for high power rectifier control applications. Two independent thyristor elements in a electrically isolated package enable you to achieve flexible design, especially for AC switch application, idial terminal location for bus bar connection helps both your mechanical design and mounting procedure be more efficient. The applications of the SBA500AA40 include Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers, Static switches, Internal Configurations.
Parametrics
SBA500AA40 absolute maximum ratings: (1)VDRM, Repetitive Peak Off-State Voltag: 400V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 480V; (3)VRRM, Repetitive Peak Reverse Voltage: 400V; (4)IT(AV), Average On-State Current: 500A; (5)IT(RMS), R.M.S. On-State Current: 785A; (6)ITSM, Surge On-State Current: 9.1/10.0kA; (7)I2t, I2t, Value for one cycle of surge current: 416 kA2S; (8)PGM, Peak Gate Power Dissipation: 15W; (9)PG(AV), Average Gate Power Dissipation: 5W.
Features
SBA500AA40 features: (1)IT(AV) 500A, IT(RMS)785A; (2)di/dt 200 A/μs; (3)dv/dt 500V/μs.
