Product Summary

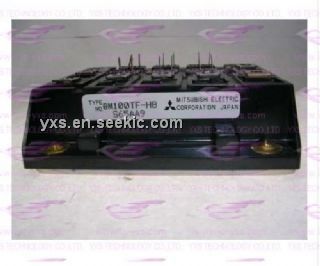

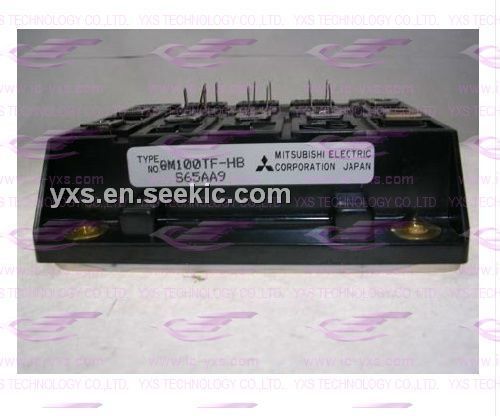

The QM100TF-HB is a high power switching use, insulated type, transistor module. It is suitable for Inverters, Servo drives, UPS, DC motor controllers, NC equipment, Welders.

Parametrics

QM100TF-HB absolute maximum ratings: (1)Collector-emitter voltage, VCEX(SUS): 600V; (2)Collector-emitter voltage, VCEX: 600V; (3)Collector-base voltage, VCBO: 600V; (4)Emitter-base voltage, VEBO: 7V; (5)Collector current, IC: 100A; (6)Collector reverse current, -IC: 350A; (7)Collector dissipation, PC: 4.5W; (8)Base current, IB: 100A; (9)Surge collector reverse current, -ICSM: 1000A; (10)Junction temperature, Tj: -40 to 150℃; (11)Storage temperature, Tstg: -40 to 125℃; (12)Isolation voltage, Viso: 2500V.

Features

QM100TF-HB features: (1)IC Collector current: 100A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 750; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N) File No. E80271.

Diagrams

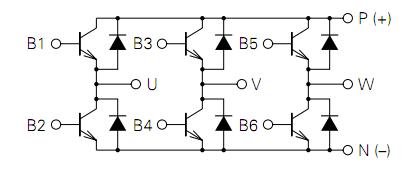

QM100TF-HB block diagram
