Product Summary

The PS11023-A is an IGBT module.

Parametrics

PS11023-A absolute maximum ratings: (1)Collector Dissipation, Pc: 75 mW; (2)Collector-Emitter Voltage, VCEO: 30 V; (3)mitter-Collector Voltage, VECO: 5 V; (4)Collector Current, Ic: 20 mA; (5)Operating Temperature, Topr: -30 to +85℃; (6)Storage Temperature, Tstg: -40 to +100℃.

Features

PS11023-A features: (1)Outer Dimension 3.0 x 1.2 x 2.5 mm ( L x W x H ); (2)Photo Current: 7mA TYP. (VCE=5V,Ee=5mW/cm2); (3)Lead–free soldering compatible; (4)RoHS compliant.

Diagrams

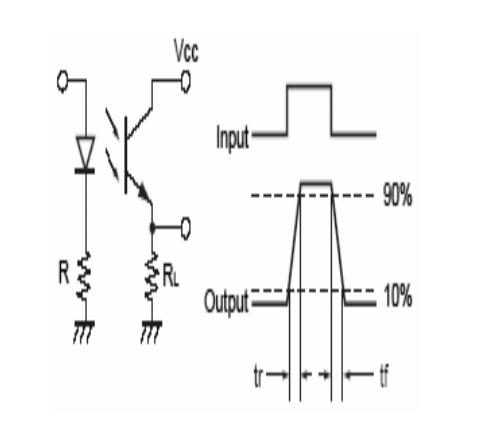

PS11023-A block diagram
