Product Summary

The PP20012HS is an IGBT module. The application of the PP20012HS are: High Power Switching; A.C. Motor Controls; D.C. Motor Controls; Uninterruptible Power Supply.

Parametrics

PP20012HS absolute maximum ratings: (1)Number of Digits: 20; (2)Number of Segments: 160; (3)Maximum Clock Frequency: 400 KHz; (4)Operating Supply Voltage: 8.50V; (5)Maximum Supply Current: 0.12 mA; (6)Maximum Power Dissipation: 400 mW; (7)Maximum Operating Temperature: +180℃; (8)Minimum Operating Temperature: -80℃.

Features

PP20012HS features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function.

Diagrams

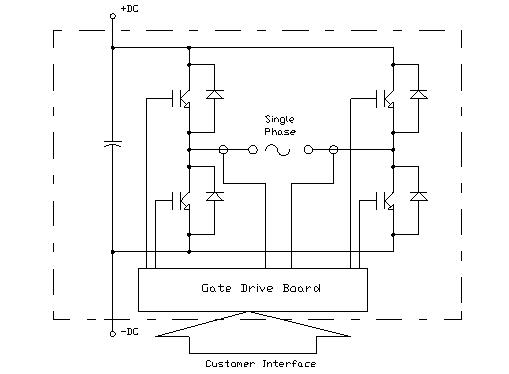

PP20012HS block diagram
