PDMB300B12

PDMB300B12, Dual IGBT module, 300A, 1200V, 1600W, Nihon

Rated 5 Rating 5 | reviews | Write a review

Price:: US $85.00~95.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30 :	95.00 / Piece
31 ~ 60 :	90.00 / Piece
61 ~ 90 :	85.00 / Piece

PartNumber:: PDMB300B12

Brand:: Nihon Inter Electronics Corporation - NIEC | D/C: 10+

Availability:: Supply Ability: 500/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-19

From Other Seller

Part Number:PDMB300B12
US $85.00 - 95.00
Quantity:

piece

Product Summary

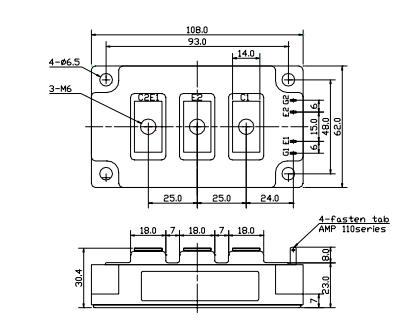

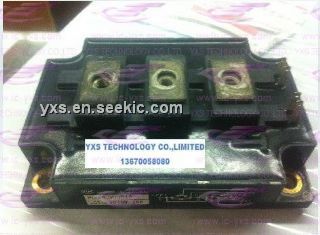

The PDMB300B12 is a Dual IGBT module.

Parametrics

PDMB300B12 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200 V; (2)Gate-Emitter Voltage, VGES: ±20 V; (3)Collector Current, DC, IC: 300A, 1 ms, ICP: 600A; (4)Collector Power Dissipation, PC: 1600 W; (5)Junction Temperature Range, Tj: -40 to +150℃; (6)Storage Temperature Range, Tstg: -40 to +125℃; (7)Isolation Voltage Terminal to Base AC, 1 min.), VISO: 2500 V; (8)Mounting Torque, Module Base to Heatsink, Bus Bar to Main Terminals, FTOR: 3 N·m.

Features

PDMB300B12 features: (1)ollector-Emitter Cut-Off Current, ICES: VCE=1200V, VGE=0V: 6.0mA; (2)Gate-Emitter Leakage Current, IGES: VGE=+/- 20V, VCE=0V: 1.0μA; (3)Collector-Emitter Saturation Voltage VCE(sat): IC=300A,VGE=15V: 1.9 to 2.4V; (4)Gate-Emitter Threshold Voltage, VGE(th): VCE=5V,IC=300mA: 4.0 to 8.0V; (5)Input Capacitance, Cies: VCE=10V, VGE=0V, f=1MHz: 25000pF.
