Product Summary

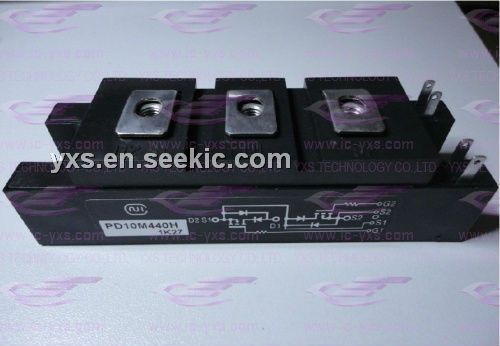

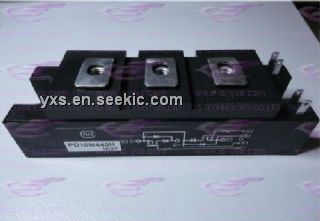

The PD10M440H is a MOSFET module. Its applications include power supply for the communications and the induction heating.
Parametrics
PD10M440H absolute maximum ratings: (1)drain-source voltage: 500V; (2)Gate-source voltage: ±20V; (3)continuous drain current: 85A; (4)pulsed drain current: 170A; (5)total power dissipation: 730W; (6)storage temperature range: -40 to 125℃.
Features
PD10M440H features: (1)Dual MOSFETs cascaded circuit; (2)Prevented body diodes of MOSFETs by SBDs, and ultra fast recovery diodes connected in parallel; (3)300KHz high speed switching possible.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PD10M440H |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
