Product Summary
The MG600Q2YS60A is an N channel IGBT.
Parametrics
MG600Q2YS60A absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate-Emitter Voltage: ±20 V; (3)Collector Current: 600A; (4)Forward Current: 600 A; (5)Collector Power Dissipation (Tc = 25℃): 4300 W; (6)Junction Temperature: 150 ℃; (7)Storage Temperature Range: -40~125 ℃; (8)Isolation Voltage: 2500 (AC 1min) V; (9)Screw Torque: 3/3 N·m.
Features
MG600Q2YS60A features: (1)The Electrodes are isolated from case; (2)Enhancement Mode; (3)Thermal output terminal(TH).

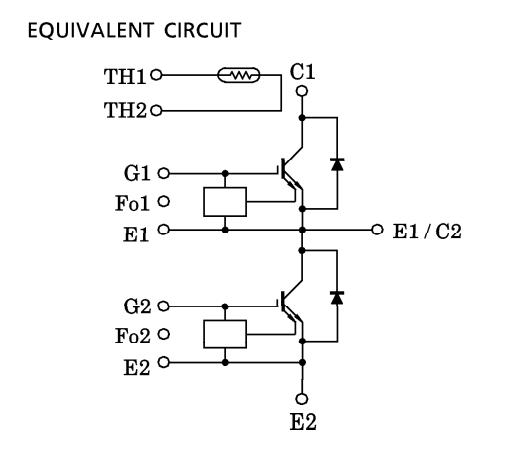

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MG600Q2YS60A |
|
IGBT MOD CMPCT 1200V 600A |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MG600J2YS60A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MG600J2YS61A |
|
IGBT MOD CMPCT DUAL 600V 600A |
Data Sheet |
Negotiable |
|
||||
|
MG600Q1US61 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MG600Q2YS60A |
|
IGBT MOD CMPCT 1200V 600A |
Data Sheet |
Negotiable |
|
||||
