Product Summary

The MG600Q1US59A is a Mitsubishi IGBT module.

Parametrics

MG600Q1US59A absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200 V; (2)Gate-emitter voltage, VGES: ±20 V; (3)Collector current, IC: 600A at DC; ICP: 1200A at 1ms; (4)Forward current, IF: 600A at DC; IFM: 1200A at 1ms; (5)Collector power dissipation (Tc = 25℃), PC: 2750 W; (6)Junction temperature, Tj: 150 ℃; (7)Storage temperature range: -40 ~ 125 ℃; (8)Isolation voltage, VIsol:2500(AC, 1 min) V; (9)Screw torque (Terminal: M4 / M6:2 / 3N.m; mounting: 3 N.m.

Features

MG600Q1US59A features: (1)The electrodes are isolated from case.; (2)Enhancement-mode; (3)Integrates fault-signal output circuit in package. (Short-Circuit and Over-Current); (4)UL Recognized Yellow Card No.E80276; File No.E80271.

Diagrams

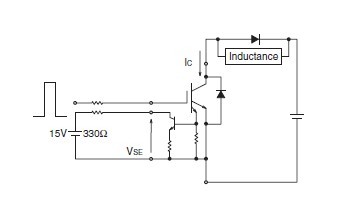

MG600Q1US59A block diagram
