Product Summary
The MG360V1US41 is an N channel IGBT.
Parametrics
MG360V1US41 absolute maximum ratings: (1)collector-emitter voltage: 1700V; (2)gate-emitter voltage: ±20V; (3)collector current: DC: 360A, 1ms: 720A; (4)forward current: DC: 360A, 1ms: 720A; (5)collector power dissipation: 3600W; (6)junction temperature: 150℃; (7)storage temperature range: -40℃ to +125℃; (8)isolation voltage: 2500V; (9)screw torque: 2/3/3N·m.
Features
MG360V1US41 features: (1)the electrodes are isolated from case; (2)high input impedance; (3)enhancement-mode; (4)high speed: tf=1.5us(max.), trr=0.6us(max.); (5)outline: TOSHIBA 2-109E1A; (6)weight: 590g(typ.).

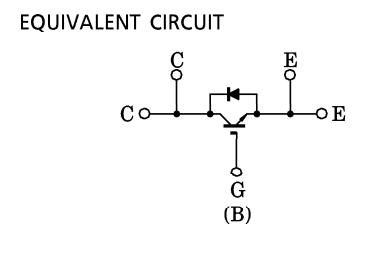

Diagrams
