Product Summary

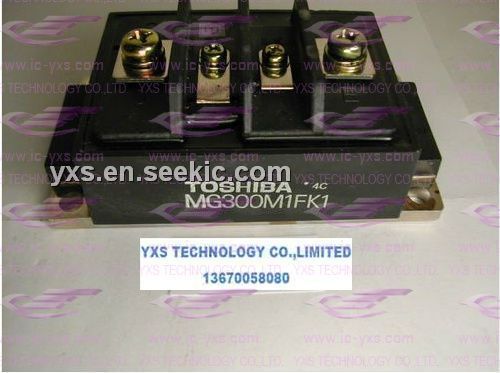

The MG300M1UK1 is an N channel IGBT. The applications of it include high power switching and motor control.

Parametrics

MG300M1FK1 absolute maximum ratings: (1)collector-base voltage: 1000V; (2)collector-emitter sustaining voltage: VCEX(SUS): 1000V, VCEO(SUS): 880V; (3)emitter-base voltage: 7V; (4)collector current: IC: 300A, ICP: 600A; (5)forward current: IF: 300A, IFM: 600A; (6)base current: 40A; (7)collector power dissipation: 1600W; (8)junction temperature: 150℃; (9)storage temperature range: -40℃ to +125℃.

Features

MG300M1FK1 features: (1)the collector is isolated from the heat sink; (2)wide safe operating area; (3)high DC current gain: hFE=100(min.); (4)low saturation voltage: VCE(sat)=2V(max.).

Diagrams

MG300M1FK1 block diagram
