Product Summary

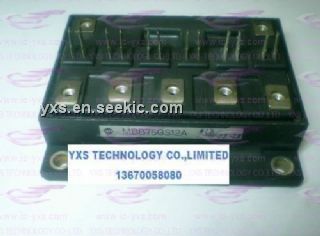

The MBB75GS12A is an IGBT module range with soft and fast (SFD) free-wheeling diode. In order to maintain switching losses to minimal, improving Free Wheeling Diodes, (FWD), is essential and Hitachis version of this is the Soft and Fast Recovery (SFD) Free Wheeling Diode. Basically, improvements have been achieved in the following key requirements.

Parametrics

MBB75GS12A absolute maximum ratings: (1)VCES: 1200V; (2)IC: 75A; (3)PC: 400W.

Features

MBB75GS12A features: (1)High speed small recovery time, tr; (2)Low loss small reverse-peak current, Irp; (3)Low noise small rate of charge of recovery current, di/dt.
