Product Summary

The FZ1800R16KF4 is an IGBT Module.

Parametrics

FZ1800R16KF4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1600 V; (2)DC-collector current, IC: 1800 A; (3)repetitive peak collctor current, ICRM: 3600 A; (4)total power dissipation, Ptot: 11 kW; (5)gate-emitter peak voltage, VGE: +/- 20 V; (6)DC forward current, IF: 1800 A; (7)repetitive peak forw. current, IFRM: 3600 A; (8)insulating test voltage, VISOL: 3,4 kV.

Features

FZ1800R16KF4 features: (1)forward voltage, VF: 2.4 to 2.8V; (2)peak reverse recovery current, IRM: 1100A; (3)recovered charge, Qr: 180μAs; (4)turn-off energy lost per puls, Eon: 750mWs; (5)turn-on energy lost per puls, Eoff: 450mWs.

Diagrams

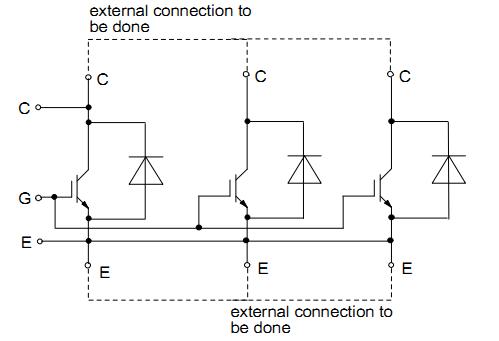

FZ1800R16KF4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ1800R16KF4
FZ1800R16KF4

Infineon Technologies

IGBT Modules 1600V 1800A SINGLE

Data Sheet

0-1: $737.92
1-3: $664.13
3-5: $590.33
5-10: $574.70
