Product Summary

The FZ1800R12KL4C is an IGBT module.

Parametrics

FZ1800R12KL4C absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, TC = 80℃, IC,nom: 1800 A; (3)DC-collector current TC = 25℃, IC: 2850 A; (4)repetitive peak collector current tP = 1 ms, TC = 80℃, ICRM: 3600 A; (5)total power dissipation, TC=25℃, Transistor, Ptot: 11.4 kW; (6)gate-emitter peak voltage, VGES: ±20V; (7)DC forward current, IF: 1800 A; (8)repetitive peak forw. current, tP = 1 ms, IFRM: 3600 A; (9)insulation test voltage RMS, f = 50 Hz, t = 1 min., VISOL: 2.5KV.

Features

FZ1800R12KL4C features: (1)collector-emitter saturation voltage IC = 1800 A, VGE = 15V, Tvj = 25℃, VCE sat: 3.2 V; (2)IC = 1800 A, VGE = 15V, Tvj = 125℃ VCE sat: 3.9 V; (3)threshold voltage IC = 72 mA, VCE = VGE, Tvj = 25℃, VGE(th): 4,5 5,5 6,5 V; (4)input capacitance f = 1MHz, Tvj = 25℃, VCE = 25V, VGE = 0V, Cies: 135 nF.

Diagrams

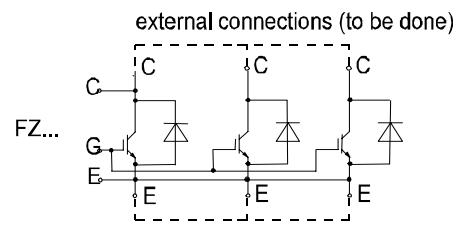

FZ1800R12KL4C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ1800R12KL4C
FZ1800R12KL4C
Infineon Technologies
IGBT Modules 1200V 1800A SINGLE
Data Sheet
0-1: $924.62
1-3: $511.90
3-5: $487.73
5-10: $487.71
