Product Summary

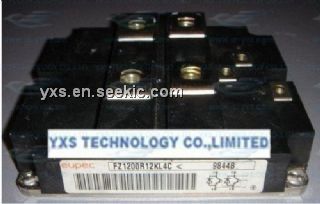

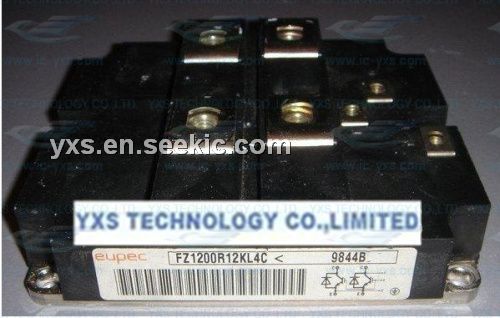

The FZ1200R12KL4C is an IGBT module.

Parametrics

FZ1200R12KL4C absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, ICnom: 1200A; IC: 1900A; (3)repetitive peak collector current, ICRM: 2400A; (4)total power dissipation, Ptot: 780kW; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FZ1200R12KL4C features: (1)Product Category: IGBT Modules; (2)RoHS: No; (3)Product: IGBT Silicon Modules; (4)Configuration: Dual Common Emitter Common Gate; (5)Collector- Emitter Voltage VCEO Max: 1200 V; (6)Collector-Emitter Saturation Voltage: 2.1 V; (7)Continuous Collector Current at 25℃: 1900 A; (8)Gate-Emitter Leakage Current: 400 nA; (9)Power Dissipation: 7.8 KW; (10)Maximum Operating Temperature: + 125℃; (11)Package / Case: IHM130; (12)Maximum Gate Emitter Voltage: +/- 20 V; (13)Minimum Operating Temperature: - 40℃; (14)Mounting Style: SMD/SMT.

Diagrams

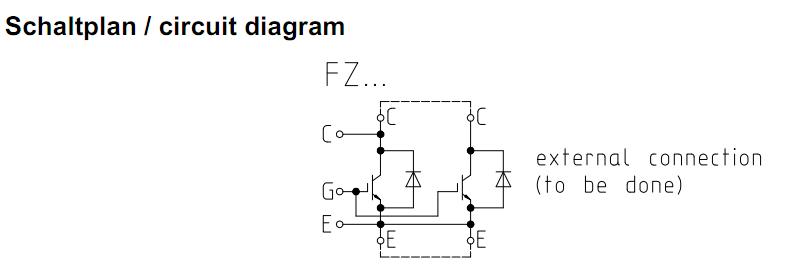

FZ1200R12KL4C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ1200R12KL4C
FZ1200R12KL4C

Infineon Technologies

IGBT Modules 1200V 1200A SINGLE

Data Sheet

0-1: $588.01
1-3: $532.53
3-5: $477.06
5-10: $443.78
