Product Summary
The FS100R06KE3 is an IGBT module.
Parametrics
FS100R06KE3 absolute maximum ratings: (1)collector-emitter voltage VCES: 600 V; (2)DC-collector current, IC, nom.: 100 A; (3)DC-collector current, IC: 200 A; (4)total power dissipation Ptot: 335 W; (5)gate-emitter peak voltage VGES: +/- 20 V.
Features
FS100R06KE3 features: (1) VCE sat: 1.45 to 1.90 V; (2) collector-emitter saturation voltage: 1.6 V; (3) gate threshold voltage: 4.9 to 6.5V; (4) input capacitance Cies: 6.20 nF; (5) collector-emitter cut-off current ICES: 1.0mA; (7) gate-emitter leakage current IGES: 400nA.

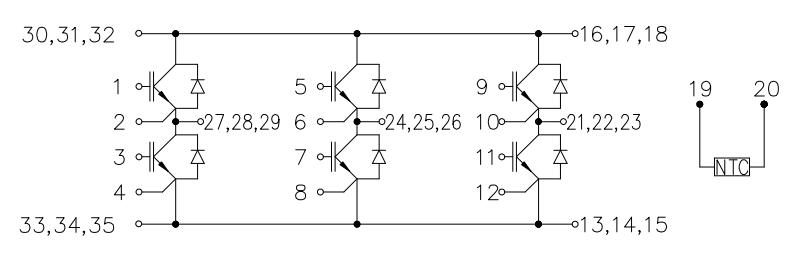

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() FS100R06KE3 |
![]() Infineon Technologies |
![]() IGBT Modules ECONO PACK 3 WITH FAST TRENCH |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
