Product Summary

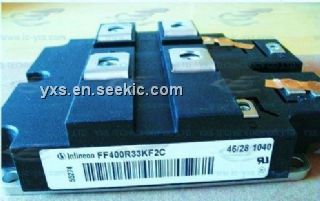

The FF400R33KF2C is an IGBT-Module.

Parametrics

FF400R33KF2C absolute maximum rated values: (1)collector-emitter voltage VCES: 1200 V; (2)IC, nom.: 400 A; (3)DC-collector current IC: 580 A; (4)repetitive peak collector current ICRM: 800 A; (5)total power dissipation Ptot: 2000 W; (6)gate-emitter peak voltage VGES: +/- 20 V.

Features

FF400R33KF2C features: (1)VCE sat: 1.70 to 2.15 V; (2)collector-emitter saturation voltage: 2.00 V; (3)gate threshold voltage: 5.0 to 6.5 V; (4)input capacitance Cies: 1.1nF; (5)collector-emitter cut-off current ICES: 5.0mA; (7)gate-emitter leakage current IGES: 400nA.

Diagrams

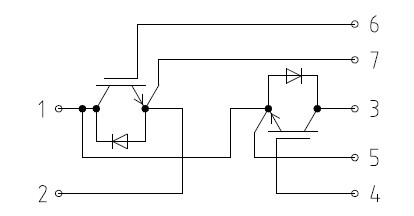

FF400R33KF2C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF400R33KF2C
FF400R33KF2C
Infineon Technologies
IGBT Modules 3300V 400A DUAL
Data Sheet
0-1: $1,521.02
1-4: $1,368.92
