Product Summary

The F4-50R12MS4 is an IGBT Module. The application of the F4-50R12MS4 includes high frequency switching application.

Parametrics

F4-50R12MS4 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 50A; (3)Repetitive peak collector current, ICRM: 100A; (4)Total power dissipation, Ptot: 355W; (5)Gate-emitter peak voltage, VGES: ±20V.

Features

F4-50R12MS4 features: (1)High short circuit capability, self limiting short circuit current; (2)Low switching losses; (3)VCE with positive temperature coefficient.

Diagrams

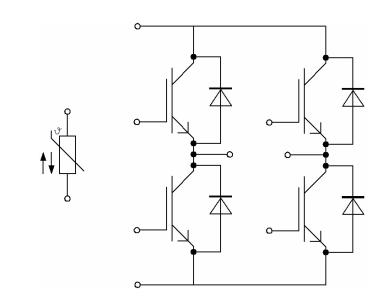

F4-50R12MS4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
F4-50R12MS4
F4-50R12MS4

Infineon Technologies

IGBT Modules N-CH 1.2KV 70A

Data Sheet

0-6: $55.63
6-10: $50.33
