Product Summary

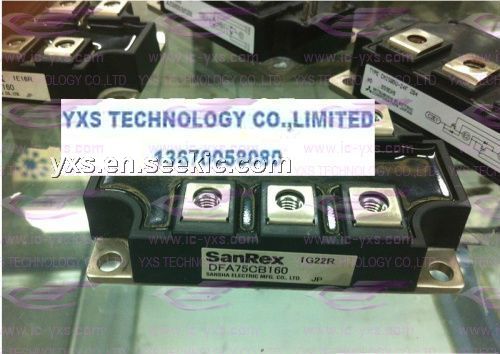

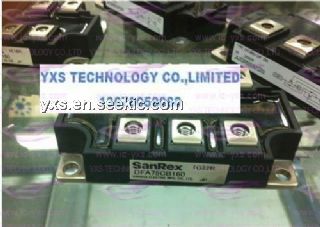

The DFA75BA160 is a three phase diode and thyristor complex isolated module which is designed for rash current circuit. The DFA75CB160 contains six diodes connected in a three phase bridge configuration, and a thyristor connected to a direct current line.

Parametrics

DFA75CB160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1600V; (2)Non-Repetitive Peak Reverse Voltage, VRSM: 1700V; (3)Output Current (D.C.), ID: 75A; (4)Surge forward current, IFSM: 910/1000A; (5)Operating Junction Temperature, Tj: -40 to +150℃.

Features

DFA75CB160 features: (1)This Module is designed very compactly; (2)diode module and thyristor put together; (3)isolated type between electorode terminal and mounting base.

Diagrams

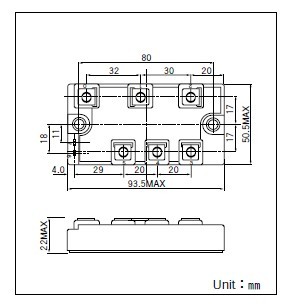

DFA75CB160 block diagram
