CPV362M4UPBF

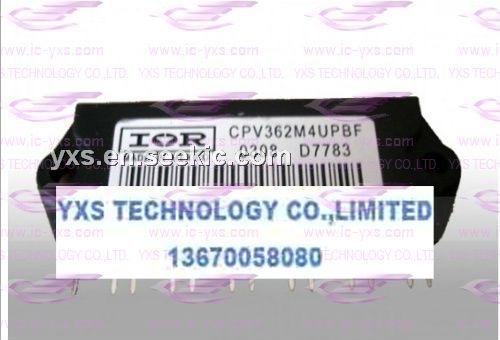

CPV362M4UPBF, IGBT SIP Module, 600V, 22A, 23W, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~33.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30 :	33.00 / Piece
31 ~ 60 :	25.00 / Piece
61 ~ 90 :	20.00 / Piece

PartNumber:: CPV362M4UPBF

Brand:: International Rectifier - IR | D/C:

Availability:: Supply Ability: 2000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-22

From Other Seller

Part Number:CPV362M4UPBF
US $20.00 - 33.00
Quantity:

piece

Product Summary

The CPV362M4UPBF is an IGBT SIP Module. The IGBT technology is the key to Vishay’s HPP advanced line of IMS (Insulated Metal Substrate) power modules. The CPV362M4UPBF is more efficient than comparable bipolar transistor modules, while at the same time having the simpler gate-drive requirements of the familiar power MOSFET. This superior technology has now been coupled to a state of the art materials system that maximizes power throughput with low thermal resistance. This package is highly suited to motor drive applications and where space is at a premium.

Parametrics

CPV362M4UPBF absolute maximum ratings: (1)Collector to emitter voltage, VCES: 600 V; (2)Continuous collector current, each IGBT IC, TC = 25℃: 7.2A; (3)TC = 100℃ 3.9A; (4)Pulsed collector current, ICM: 22A; (5)Clamped inductive load current ILM: 22A; (6)Diode continuous forward current IF TC = 100℃: 3.4A; (7)Diode maximum forward current, IFM: 22A; (8)Gate to emitter voltage, VGE: ±20 V; (9)Isolation voltage, VISOL, 1 minute, any terminal to case: 2500 VRMS; (10)Maximum power dissipation, each IGBT, PD, TC = 25℃: 23W; TC = 100℃: 9.1W; (11)Operating junction and storage temperature range TJ, Tstg: -40 to + 150℃; (12)Soldering temperature 10 s, (0.063" (1.6 mm) from case): 300℃.

Features

CPV362M4UPBF features: (1)Fully isolated printed circuit board mount package; (2)Switching-loss rating includes all “tail” losses; (3)HEXFRED soft ultrafast diodes; (4)Optimized for high speed over 5 kHz See fig. 1 for current vs. frequency curve; (5)Totally lead (Pb)-free; (6)Designed and qualified for industrial level.
