Product Summary
The CM800DY-34H is a high power switching use insulated type module. The applications of the CM800DY-34H include AC Motor Control, Motion/Servo Control, Power supply, etc.
Parametrics
CM800DY-34H absolute maximum ratings: (1)VCES, Collector-emitter voltage G-E short-circuited: 1200 V; (2)VGES, Gate-emitter voltage C-E short-circuited: ±20 V; (3)Collector current, IC, DC, TC=117℃: 790A; ICRM, Pulse, Repetitive: 1600 A; (4)Ptot, Total power dissipation TC=25℃: 5355 W; (5)Emitter current, IE, TC=25℃: 790A; IERM, Pulse, Repetitive: 1600A; (6)Visol, Isolation voltage Terminals to base plate, RMS, f=60 Hz, AC 1 min: 2500 V; (7)Tjmax, Maximum junction temperature: 175℃; (8)Tcmax, Maximum case temperature: 125℃.
Features
CM800DY-34H features: (1)Collector current IC: 790 A; (2)Collector-emitter voltage VCES: 1200 V; (3)Maximum junction temperature Tjmax: 175℃; (4)Flat base Type; (5)Copper base plate; (6)RoHS Directive compliance; (7)UL Recognized under UL1557, File E323585.

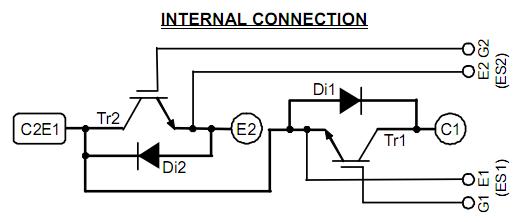

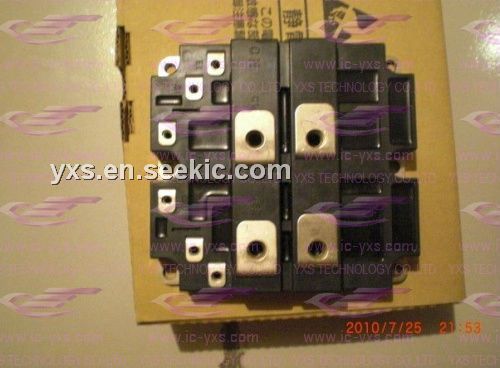

Diagrams
