Product Summary
The CM75MXB2-24A is an IGBT module. The applications of the CM75MXB2-24A include General purpose Inverters, Servo Amplifiers.
Parametrics
CM75MXB2-24A absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 600V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, DC, TC=87℃, IC: 75A; pulse, ICM: 150A; (4)Emitter current, IE: 75A; Pulse, IEM: 150A; (5)Maximum collector dissipation, TC = 25℃, PC: 280W.
Features
CM75MXB2-24A features: (1)IC: 75A; (2)VCES: 600V; (3)CIB (3-phase Converter + 3-phase Inverter + Brake); (4)Flatbase Type / Insulated Package / Copper base plate; (5)RoHS Directive compliant.

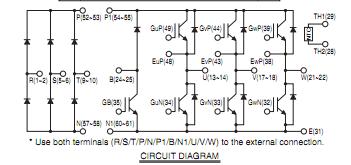

Diagrams
