Product Summary

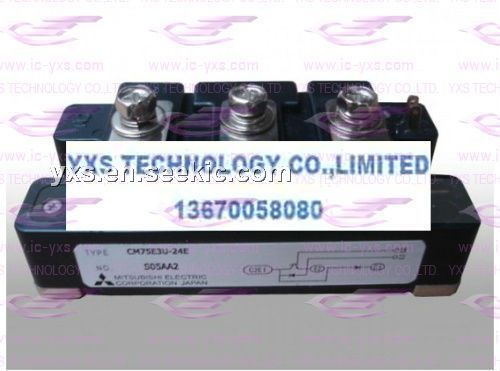

The CM75E3U-24E is a Mitsubishi IGBT Module designed for use in switching applications. It consists of one IGBT having a reverse-connected super-fast recovery free-wheel diode and an anode-collector connected super-fast recovery freewheel diode. All components and interconnects of CM75E3U-24E are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM75E3U-24E absolute maximum ratings: (1)Junction Temperature: -40 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (Tc = 25℃): 75 Amperes; (6)Peak Collector Current: 150 Amperes; (7)Emitter Current (Tc = 25℃): 75 Amperes; (8)Peak Emitter Current: 150 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃, Tj ≤ 150℃): 600 Watts; (10)Mounting Torque, M5 Main Terminal: 2.5 ~ 3.5 N·m; (11)Mounting Torque, M6 Mounting: 3.5 ~ 4.5 N·m.

Features

CM75E3U-24E features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

Diagrams

CM75E3U-24E block diagram
