Product Summary

The CM75DY-34A is an IGBT module. The applications of the CM75DY-34A include General purpose inverters & Servo controls, etc.

Parametrics

CM75DY-34A absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1700V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, DC, TC=87℃, IC: 75A; pulse, ICM: 150A; (4)Emitter current, IE: 75A; Pulse, IEM: 150A; (5)Maximum collector dissipation, TC = 25℃, PC: 780W; (6)Junction temperature, Tj: -40 to +150℃; (7)Storage temperature, Tstg: -40 to +125℃; (8)Isolation voltage, Viso: 3500 Vrms.

Features

CM75DY-34A features: (1)IC: 75A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

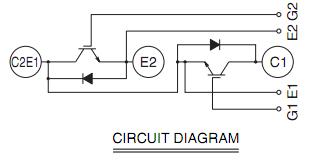

CM75DY-34A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM75DY-34A
CM75DY-34A


IGBT MOD DUAL 1700V 75A A SER

Data Sheet

0-2: $64.81
