Product Summary

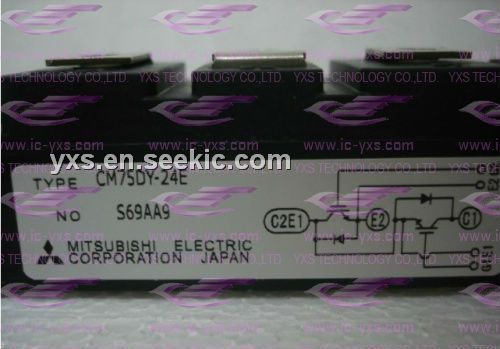

The CM75DY-24E is a Mitsubishi IGBT Module. It is designed for use in switching applications. Each module consists of two IGBTs in a half bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components of CM75DY-24E and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM75DY-24E include: AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM75DY-24E absolute maximum ratings: (1)Junction Temperature Tj: –40 to 150 ℃; (2)Storage Temperature Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 75 Amperes; (6)Peak Collector Current ICM: 150 Amperes; (7)Emitter Current (TC = 25℃) IE: 75 Amperes; (8)Peak Emitter Current IEM: 150 Amperes; (9)Maximum Collector Dissipation (TC = 25℃) Pc: 600 Watts; (10)Mounting Torque, M5 Main Terminal: 1.47 ~ 1.96 N · m; (11)Mounting Torque, M6 Mounting: 1.96 ~ 2.94 N · m; (12)Weight: 190 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
CM75DY-24E features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
