Product Summary

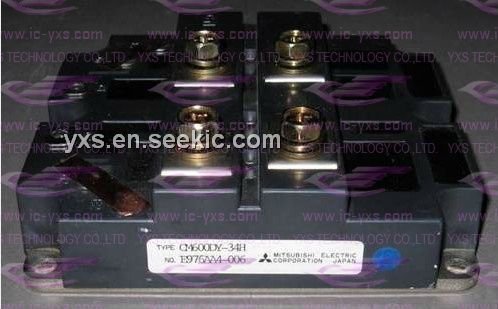

The CM600DY34H is an IGBT module.

Parametrics

CM600DY34H absolute maximum ratings: (1)VCES, collector-emitter voltage: 600V; (2)VGES, gate-emitter voltage: ±20V; (3)IC, collector curretn: 600A at Tc=25℃; ICM: 1200A at pulse; (4)IE, emitter current: 600A at Tc=25℃; IEM: 1200A at pulse; (5)PC, maximum collector dissipation: 1130W at Tc=25℃; (6)TJ, junction temperature: -40 to 150℃; (7)Tstg, storage temperature: -40 to 125℃; (8)Viso, isolation voltage: 2500V; (9)weight: 580g typ.

Features

CM600DY34H features: (1)IC: 600A; (2)VCES: 600V; (3)insulated type; (4)2-lements in a pack.

Diagrams

CM600DY34H block diagram
