Product Summary

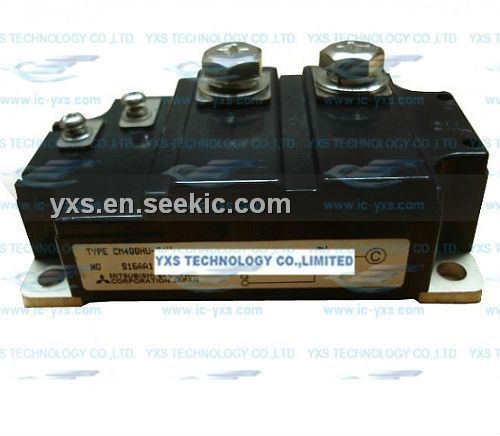

The CM400HU-24H is a high power switching use insulated type module. The CM400HU-24H consists of one IGBT Transistor in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HU-24H are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies and Laser Power Supplies.
Parametrics
CM400HU-24H absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 400 Amperes; (6)Peak Collector Current ICM: 800 Amperes; (7)Emitter Current (Tc = 25℃) IE: 400 Amperes; (8)Peak Emitter Current IEM: 800 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃, Tj≤ 150℃) Pc: 2100 Watts; (10)Mounting Torque, M6 Main Terminal: 3.5~4.5N·m; (11)Mounting Torque, M6 Mounting: 1.3~1.7N·m; (12)Weight: 450 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Volts.
Features
CM400HU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.
Diagrams
